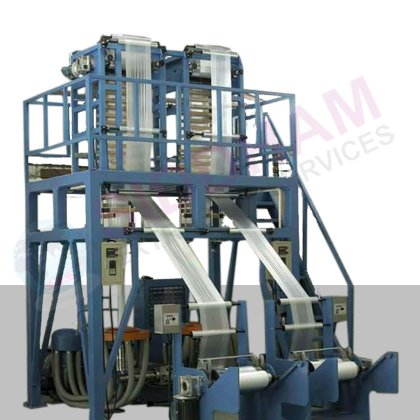

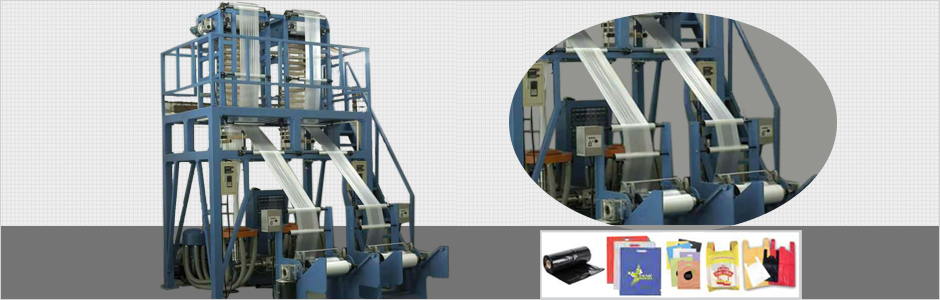

SES Double Die Blown Film Plant
Techniocale Specifiaction:
| Model | SMALL SES DD45/500 | SMALL SES DD55/800 |
|---|---|---|
| Lay Flate Width (Min-Mix) | 100-400mm | 150-700mm |
| Screw Dia | 45mm | 55mm |
| L/D | 28:1 | 28:1 |
| Max Output per hour | 55 kgs | 90 kgs |
| Main Drive | 20hp | 25hp |
| Thickness (Min-Max) microns | 20-80μ | 20-80μ |
| Die Type | Spiral | Spiral |
| Dia Size | 60mm - 2 nos. | 75mm, 90mm, 2 nos. each |
| Temp Control | 8 nos. | 8 nos. |
| Control Panel | Compalete Set | |
| Irish Ring | Yes | |
| Filter Type | Candle Type | |
| Winder Type | Steel Surface | |
| Winder Motor | 1.0 HP AC geared motor - 2 nos. | |
| Take off Motor | 1.0 HP AC geared motor - 2 nos. | |
| Air Cooling Ring | 1 set with required inserts - 2 nos. | |
| Air Blower | 2 HP AC Motor - 2 nos. | 3 HP AC Motor - 2 nos. |
| Nip Roller Size | 500mm(20") | 800mm(32") |
| Rotating Die Attachment | Optional | Optional |
| Total Connected Load | 30kw | 42 kw |
| Floor Space (L x W x H) | 12"x12"x11" | 12"x12"x14" |
| Approximete Weight | 3 tons | 4 tons |
